Immunoassay Analyzer Pointcare Reader Vet1i

Immunoassay analyzer detects and quantifies specific analytes in blood or samples of body fluids by utilizing immunoassay methodologies. Pointcare Reader Vet1i is a fully automated in-vitro diagnostic device, which does not need sample pretreatment. Based on fluorescent lateral chromatography assay, Pointcare Reader Vet1i Immunoassay Analyzer provides quantitative in-vitro determination of clinical immunoassay analytes in whole blood, plasma (EDTA anticoagulant), or serum. The entire analysis requires 2μL of sample and is capable of providing results in 5 minutes.

Get A Quote

Sales Support

international_sales@mnchip.com
WhatsApp: +86 181 0216 7085

Feature & Benefit

Accuracy
Pointcare reader vet1i has a wide dynamic range, providing accurate test results in minutes. The accuracy and repeatability of immunoassay analyzer data are comparable to reference laboratories and can help you diagnose and treat patients confidently.
Quantitative
In the test of in-vitro diagnosis, the concentration of analytes in blood samples can be accurately quantified by immunoassay analyzer.
Optics
Immunoassay analyzer is based on fluorescent lateral chromatography assay. Technology improved fluorescence optical module can be used for high sensitivity diagnosis.
Measurement
Immunoassay analyzer has a variety of measurement modes. Modes single, multi-mode, QC test and review (save results) mode.
Monitoring system
Pointcare reader vet1i contain a highly efficient integrated quality control system (RQC) that continuously monitors reagent quality to ensure optimal test performance.

Few simple steps
Immunoassay analyzer adopts fully automatic system, and the entire analysis requires only needs 4 steps.
Short time
Immunoassay analyzer delivers fast and reliable results. 5 minutes or so to complete the entire process from sample to output results, to help you quickly obtain comprehensive and accurate test results, reduce patient waiting time, and improve patient satisfaction.
High quality
Compact design and lightweight can effectively save space, which can make you use this immunoassay analyzer anywhere and anytime in various environments.

Reagent

Pointcare Reader Vet1i Immunoassay Analyzer is an in-vitro diagnostic device that measures the concentration of analytes, contained in whole blood, plasma (EDTA anticoagulant), or serum, in quantitative ways. The entire analysis requires 2μL of sample and is capable of providing results in 5 minutes.

fSAA Fluorenscence Quantitative Test Kit

cCRP Fluorenscence Quantitative Test Kit

FPV-Ab Fluorenscence Quantitative Test Kit

FHV-Ab Fluorenscence Quantitative Test Kit

FCV-Ab Fluorenscence Quantitative Test Kit

CPV-Ab Fluorenscence Quantitative Test Kit

CDV-Ab Fluorenscence Quantitative Test Kit

CDV Fluorenscence Quantitative Test Kit

CPV Fluorenscence Quantitative Test Kit

CCV Fluorenscence Quantitative Test Kit

1 Test/Disc 10 Discs/Box

Step

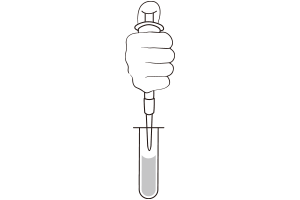

add 2μl sample in the diluent tube.

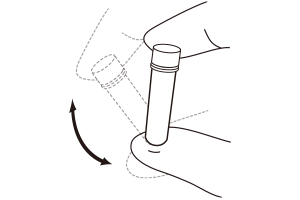

slightly invert the diluent tube 5 or 6 times.

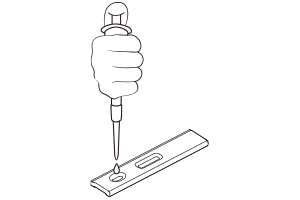

add 100 μl mixture into the sample port.

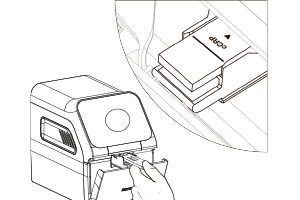

insert the test kit.

Specification

Dimensions: 210mm (L)*125mm (W)*175mm (H)
Weight: 1.3 kg (2.87 lbs)

Sample Type: Serum/Plasma (cCRP/fSAA: Whole blood/Serum/Plasma)
Sample Size: 0-640IU/L (cCRP: 0-200mg/L; fSAA: 0-300mg/L.)
Test Time: 5 minutes

Quality Control Features: Built-in real-time Quality Control (rQC®) system
Communication: Bi-directional input/output
Interfaces: USB, Bluetooth.
Memory Capacity: Up to 50,000 patient results

Mode of Opertion: Continuous
Ambient Temperature: 10~30℃(50–86 ºF), indoor use.
Power Requirements: 24 VA
Main Supply Voltage: 100-240 volts AC, 50-60 Hz.
Humidity: 40%~85%
Power Bank: Capable
