On-site Blood Chemistry Analyzer Pointcare V3
PV3 is a chemical, electrolyte, immunoassay, and blood gas all-in-one analysis. The platform is the choice of more than 10,000 users worldwide and gives you trusted accuracy.
PV3 is small and durable, can be operated anytime, anywhere, it can even be driven by power bank. The user interface is friendly and easy to learn. It’s very simple and intuitive. Provides accurate laboratory quality results in 8 to 12 minutes, making it ideal for veterinary clinics as well as bringing equipment to clients for testing. In addition, PV3 is widely used in laboratories of research institutes, pharmaceutical and biotechnology companies.
WhatsApp: +86 181 0216 7085
Feature & Benefit
Reliable lab-accurate results
PV3, veterinary blood chemistry analyzer, can deliver fast and reliable results and offers maximum support for diagnosis and treatment.
Real-time Quality Control
PV3 contain a highly efficient integrated quality control system (RQC) that continuously monitors disc function and reagent quality to ensure optimal test performance. RQC is a highlight of veterinary blood chemistry analyzer.
Multiple connection possibilities
The MNCHIP administration platform is tailored to hospital and laboratory information systems and offers the possibility of connecting the existing information systems of veterinary clinics.
Three simple steps for fast, efficient performance.
Laboratory technicians learn quickly and are very easy to use, which makes their work more convenient.
Small box big performance(Power bank capable)
Developed for space stations, only the size of an SLR camera. The size is perfect for settings with limited space and mobile use.
Little to no maintenance
Save time and costs plus increase employee compliance to use. The use of xenon lamps as the light source has a theoretical working time of decades.
Single-use multi-test panel including chemistry, electrolyte, immunoassay and more.
The tests menu of 34 parameters including chemistry, electrolyte, and immunoassay is the broadest of any point-of-care analyzer. With the efforts of our cusromer-oriented R&D team, the test parameters will continue to be expanded.
From animal health to new drug research
Ideal for veterinary clinics, mobile practitioners, research laboratories, and pharmaceutical and biotech companies.
Deliver real-time care for enhancing client satisfaction
Caregivers can perform a complete panel of up to 13 chemistry tests on-site in about 8~12 minutes. Seconds of hands-on time, minutes for treatment solution. Provide clients with immediate answers during their visit and save technician time load-and-go efficiency.
Provide the most competitive and affordable reagent discs in the industry.
Born from space technology, MNCHIP reagent disc is a completely self-contained disposable chemistry panel designed to meet various testing needs. Just 3 drops of whole blood are required to deliver up to 17 precise results.
TP ALB GLO* ALB/GLO* TBIL ALT ALP CK AMY GLU CHOL CRE BUN BUN/CRE* Ca P
K+ Na+ Na+/K+* Cl- Ca P Mg tCO2
TP ALB GLO* ALB/GLO* TBIL ALT AST GGT GLU CRE BUN BUN/CRE*
TP ALB GLO* ALB/GLO* ALT AST GGT ALP TBIL DBIL IBIL* TBA
ALB CRE BUN BUN/CRE* K+ Ca P tCO2
TP ALB GLO* ALB/GLO* ALT ALP GLU CRE BUN BUN/CRE*
TP ALT AST ALP CK LDH GLU CRE BUN BUN/CRE*
ALT CRE BUN BUN/CRE* GLU K+ Na+ Na+/K+* Cl- tCO2
TP ALB TBIL ALT ALP CK AMY GLU CHOL CRE BUN Ca P
TP ALB GLO* ALB/GLO* AST CK GLU UA K+ Na+ Na+/K+* Cl- Ca P TBA
TP ALB GLO* ALB/GLO* AST GGT ALP CK BUN Ca P Mg
GLU FRU TG CHOL
TP ALB GLO* ALB/GLO* AMY LPS GLU Ca
* Calculated test value
** Select three analytes from 14 test analytes for reporting
# Coming soon
1 Test/Disc 10 Discs/Box

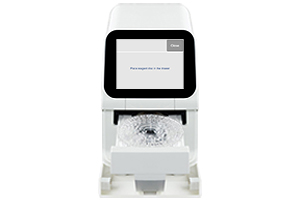

Add sample & diluent
100 μl whole blood, serum or plasma, and 430 μl diluent.
walk-away operation, self calibrates with every test run.

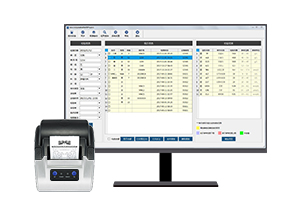

printed via computer or extra printer.
Our microfludic based blood chemistry device was derived from aerospace technology, which is also used in today’s aerospace industry. After five years of rigorous ground testing, Pointcare M will be installed on the Chinese space station launched in 2022 to provide daily blood chemistry tests for astronauts in orbit.
The analyzer is a portable spectrophotometer. The optical system consists of a xenon arc stroboscopiclamp and a beam-splitter/detector capable of reading nine wavelengths. A heater maintains the disc at 37±0.2°C during the reaction portion of the analysis. The reagent disc is developed based on microfluidic technology. It is an 8 cm diameter consumable containing all the required diluent and dry reagents to perform a panel of tests. The disc contains 30 cuvettes that will be filled with diluted plasma or diluent. The cuvettes have different pathlengths to accommodate different reagent sensitivities and analyte concentrations. Pre-measured, lyophilized reagent beads for each chemistry in the panel are placed in the cuvettes at the time of manufacture. To perform a panel of tests, the operator applies around 100μl whole blood directly into a disc. Using centrifugal and capillary forces, the disc meters the required amount of blood, separates the red cells, meters the plasma, meters the diluent, mixes the fluids, distributes the fluid to the reaction cuvettes and mixes the reagents and the diluted plasma in the cuvettes. The analyzer monitors the reactions simultaneously using nine wave-lengths, calculates the results from the absorbance data, and reports the results on the screen and on a convenient thermal roll-tape printer.
Dimensions: 210mm (L)*125mm (W)*175mm (H)
Weight: 2.2 kg (4.85 lbs)
Sample Type: Anticoagulant additives whole blood, serum or plasma.
Sample Size: 0.1cc (100 µl)
Test Time: 8-12 minutes
Quality Control Features: Built-in real-time Quality Control (rQC®) system
Communication: Bi-directional input/output
Interfaces: WIFI, USB, Bluetooth.
Memory Capacity: Up to 50,000 patient and quality control results
Consumables: 7.8cm in diameter and 0.68cm thick, single-use, self-contained plastic chemistry reagent discs. Each disc contains all reagents needed to perform a panel of tests on a single sample.
Data Input Display: 4.3 inch capacitive touchscreen
Mode of Opertion: Continuous
Ambient Temperature: 10~30℃(50–86 ºF), indoor use.
Power Requirements: 120 VA
Main Supply Voltage: 100-240 volts AC, 50-60 Hz.
Reaction Temperature: 37℃±0.2℃
Power Bank: Capable
